Product
YOGIPS
Custom -made splint
New Yogips could be provided pre-cut and pre-mold type so doctors can apply it easily on injured area.
The word ‘molding’ is losing its meaning.
Serving a variety of pre-mold splint to consumers, we’re making the splint a made to order suit.
Then again, putting the splint on patients body with a design they want to make is anything but mold anymore to us.
Benefits
- 1 Remoldable
- 2 Pre-padded and pre-cut
- 3 Pre-mold type available
- 4 Strong and light
- 5 It is air-ventilated
- 6 Malleable by air(90degree) in heating unit

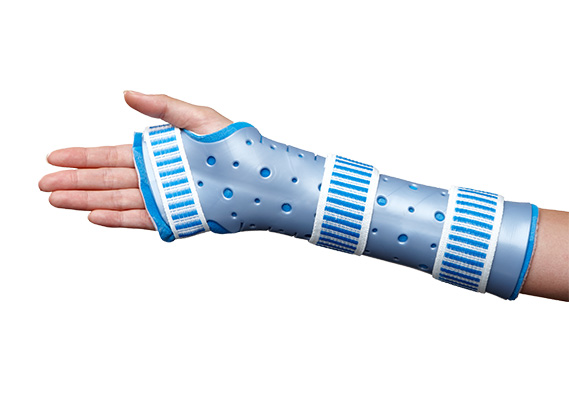

Thumb hole radial splint (premold type)


INDICATION: Carpal tunnel syndrome, Tendonitis, Arthritis, Strains
This has high compression features and provides excellent support to injured wrist and
allows full function of the fingers and thumb at the same time as protecting the wrist.
Provides radial and ulnar styloid relief.
Art no. | Size | Side | Size(mm) | Order# |
---|---|---|---|---|
HSA-200 | LARGE | RIGHT | 100 × 270 | M200011 |
HSA-200 | LARGE | LEFT | 100 × 270 | M200012 |
HSA-200 | MEDIUM | RIGHT | 85 × 240 | M200021 |
HSA-200 | MEDIUM | LEFT | 85 × 240 | M200022 |
Thumb spica radial splint (premold type)


INDICATION: Post scaphoid fracture, Carpal tunnel syndrome, Skier's thumb, Tendinitis, Post-surgical repair
Offering excellent support and compression to the wrist, CMC and MCP joints.
Art no. | Size | Side | Size(mm) | Order# |
---|---|---|---|---|
HSA-220 | LARGE | RIGHT | 90 × 240 | M220011 |
HSA-220 | LARGE | LEFT | 90 × 240 | M220012 |
HSA-220 | MEDIUM | RIGHT | 80 × 240 | M220021 |
HSA-220 | MEDIUM | LEFT | 80 × 240 | M220022 |
HSA-220 | SMALL | RIGHT | 75 × 210 | M220031 |
HSA-220 | SMALL | LEFT | 75 × 210 | M220032 |
HSA-220 | X-SMALL | RIGHT | 60 × 180 | M220041 |
HSA-220 | X-SMALL | LEFT | 60 × 180 | M220042 |
Volar splint (premold type)


INDICATION: Immobilisation of the wrist, Distal radius, ulna and carpals, excluding scaphoid
Rehabilitation phase after hand surgery First aid and first care: transitory fixation before or just after surgery
Art no. | Size | Side | Size(mm) | Order# |
---|---|---|---|---|
HSA-300V | LARGE | RIGHT | 115 × 360 | M300111 |
HSA-300V | LARGE | LEFT | 115 × 360 | M300112 |
HSA-300V | MEDIUM | RIGHT | 100 × 300 | M300121 |
HSA-300V | MEDIUM | LEFT | 100 × 300 | M300122 |
HSA-300V | SMALL | RIGHT | 80 × 240 | M300131 |
HSA-300V | SMALL | LEFT | 80 × 240 | M300132 |
HSA-300V | X-SMALL | RIGHT | 70 × 220 | M300141 |
HSA-300V | X-SMALL | LEFT | 70 × 220 | M300142 |
Ulnar gutter splint (premold type)


INDICATION: Immobilisation of the wrist, Distorsions, Stable fractures, after surgery
Conservative treatment of tendonitis/ tendovaginitis (without involvement of the thumb)
as well as degenerative or inflammatory conditions of the wrist.
Adjuvant therapy of reflex sympathetic dystrophy.
Art no. | Size | Side | Size(mm) | Order# |
---|---|---|---|---|
HSA-300G | LARGE | RIGHT | 105 × 385 | M300211 |
HSA-300G | LARGE | LEFT | 105 × 385 | M300212 |
HSA-300G | MEDIUM | RIGHT | 85 × 320 | M300221 |
HSA-300G | MEDIUM | LEFT | 85 × 320 | M300222 |
HSA-300G | SMALL | RIGHT | 70 × 280 | M300231 |
HSA-300G | SMALL | LEFT | 70 × 280 | M300232 |
Dosal splint (premold type)


INDICATION: Carpal tunnel syndrome, Tendon injuries, Wrist sprains
Dorsal design for increased patient compliance.
First aid and first care: transitory fixation before or just after surgery Conservative treatment in tendonitis,
inflammation and degenerative diseases of the wrist, even as resting splints
Art no. | Size | Side | Size(mm) | Order# |
---|---|---|---|---|
HSA-300D | LARGE | RIGHT | 105 × 385 | M300311 |
HSA-300D | LARGE | LEFT | 105 × 385 | M300312 |
HSA-300D | MEDIUM | RIGHT | 90 × 320 | M300321 |
HSA-300D | MEDIUM | LEFT | 90 × 320 | M300322 |
HSA-300D | SMALL | RIGHT | 70 × 280 | M300331 |
HSA-300D | SMALL | LEFT | 70 × 280 | M300332 |
Finger splint (premold type)

INDICATION: Finger sprains, Wrist sprains
To immobilize the finger sprains, strains, minor fractures and post-operative alignment
Art no. | Size | Side | Size(mm) | Order# |
---|---|---|---|---|
HFS-1000 | UNIVERSAL | UNIVERSAL | 80 × 220 | M100000 |
Resting pan mitt splint (premold type)


INDICATION: Positions wrist in neutral with fingers in partial flexion MCP or CMC joint of the thumb
Specially suited for people with arthritis who require support of the MCP or CMC joint of the thumb
Splint may be used volarly or dorsally to splint hypertonic hands.
Art no. | Size | Side | Size(mm) | Order# |
---|---|---|---|---|
HSA-230 | UNIVERSAL | RIGHT | 330 × 160 | M230001 |
HSA-230 | UNIVERSAL | LEFT | 330 × 160 | M230002 |
Functional position palmar splint (premold type)


INDICATION: Rheumatoid arthritis, Contracture in flexion or hyperextension of the wrist, including contracted fist
Contracture of the hand with or without radial or ulnar deviations of the hand.
It has a wrist strap to maintain it in the suitable position and to secure a progressive stretching.
The adjustment of the thumb correction can be varied.
Art no. | Size | Side | Size(mm) | Order# |
---|---|---|---|---|
HSA-320 | LARGE | RIGHT | 115 × 360 | M320011 |
HSA-320 | LARGE | LEFT | 115 × 360 | M320012 |
HSA-320 | MEDIUM | RIGHT | 95 × 292 | M320021 |
HSA-320 | MEDIUM | LEFT | 95 × 292 | M320022 |
HSA-320 | SMALL | RIGHT | 77 × 237 | M320031 |
HSA-320 | SMALL | LEFT | 77 × 237 | M320032 |
Wrist neutral palmar splint (premold type)


INDICATION: Arthritic conditions, Post reconstructive surgery, Sprains/ strains, Tendinitis, Post wrist fracture
This provides effective circumferential compression and support to the wrist while allowing full thumb and finger motion.
Useful as a step-down splint in later stage rehab or to encourage reaction with patients
who struggle with transition from immobilization to movement due to pain or anxiety.
Art no. | Size | Side | Size(mm) | Order# |
---|---|---|---|---|
HSA-420 | LARGE | RIGHT | 100 × 300 | M420011 |
HSA-420 | LARGE | LEFT | 100 × 300 | M420012 |
HSA-420 | MEDIUM | RIGHT | 85 × 250 | M420021 |
HSA-420 | MEDIUM | LEFT | 85 × 250 | M420022 |
HSA-420 | SMALL | RIGHT | 80 × 210 | M420031 |
HSA-420 | SMALL | LEFT | 80 × 210 | M420032 |
HSA-420 | X-SMALL | RIGHT | 70 × 170 | M420041 |
HSA-420 | X-SMALL | LEFT | 70 × 170 | M420042 |
Forearm humerus splint


INDICATION: Fixation of the region of the elbow following injuries and surgery
Post-traumatic immobilisation of the elbow joint, e.g. condition after bursectomy, sulcus ulnaris, descending tendopathies.
Art no. | Size | Side | Size(mm) | Order# |
---|---|---|---|---|
HLA-500 | LARGE | UNIVERSAL | 270 × 375 | M500010 |
HLA-500 | MEDIUM | UNIVERSAL | 230 × 350 | M500020 |
HLA-500 | SMALL | UNIVERSAL | 170 × 310 | M500030 |
HLA-500 | X-SMALL | UNIVERSAL | 110 × 190 | M500040 |

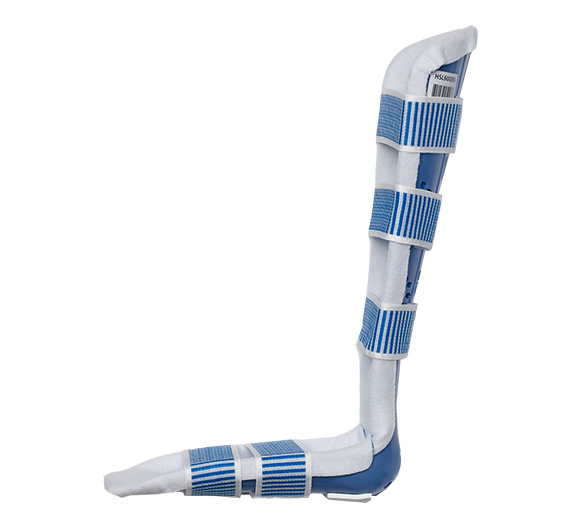

Tibial splint (below knee)


INDICATION: Lower leg, ankle foot
Short-term fixation of the ankle region (including Achilles tendon) and foot following injuries and surgery.
Designed to increase stability and help decrease pain
Provides a protected range of motion following trauma or post-operative procedures
Art no. | Size | Side | Size(mm) | Order# |
---|---|---|---|---|
HSL-600 | X-LARGE | UNIVERSAL | 290 × 390 | M600000 |
HSL-600 | LARGE | UNIVERSAL | 265 × 350 | M600010 |
HSL-600 | MEDIUM | UNIVERSAL | 245 × 325 | M600020 |
HSL-600 | SMALL | UNIVERSAL | 215 × 315 | M600030 |
HSL-600 | X-SMALL | UNIVERSAL | 190 × 295 | M600040 |
Ankle splint


INDICATION: Acute ankle injuries
Traditional stirrup design provides compression and promotes circulation to reduce swelling.
Soft drapes included for combined therapy.
Fits easily into most shoes.
Universal sizing reduces inventory on hand.
Art no. | Size | Side | Size(mm) | Order# |
---|---|---|---|---|
HSL-640 | UNIVERSAL | UNIVERSAL | 90 × 260 | M640000 |
Femoral splint (above knee)


INDICATION: Shaft fractures of the femur and for immobilisation of the knee.
Maybe molded to the contour of the limb
Art no. | Size | Side | Size(mm) | Order# |
---|---|---|---|---|
HLL-700 | LARGE | UNIVERSAL | 255 × 700 | M700010 |
HLL-700 | MEDIUM | UNIVERSAL | 255 × 600 | M700020 |
HLL-700 | SMALL | UNIVERSAL | 215 × 540 | M700030 |
HLL-700 | X-SMALL | UNIVERSAL | 200 × 400 | M700040 |
Cylinder splint


INDICATION: Postsurgical or posttraumatic immobilisation
Allowing adjustment to a wide range of calf, thigh and knee circumferences.
The soft drape stays are shaped for a greater comfort and fitting.
Art no. | Size | Side | Size(mm) | Order# |
---|---|---|---|---|
HLL-740 | LARGE | UNIVERSAL | 160 × 550 | M740010 |
HLL-740 | MEDIUM | UNIVERSAL | 160 × 500 | M740020 |
HLL-740 | SMALL | UNIVERSAL | 110 × 420 | M740030 |
Thumb hole radial splint (Flat type)


INDICATION: Carpal tunnel syndrome, Tendonitis, Arthritis, Strains
This has high compression features and provides excellent support to injured wrist and
allows full function of the fingers and thumb at the same time as protecting the wrist.
Provides radial and ulnar styloid relief.
Art no. | Size | Side | Size(mm) | Order# |
---|---|---|---|---|
HSA-200 | LARGE | RIGHT | 220 × 300 | F200001 |
HSA-200 | LARGE | LEFT | 220 × 300 | F200002 |
HSA-200 | MEDIUM | RIGHT | 210 × 235 | F200021 |
HSA-200 | MEDIUM | LEFT | 210 × 235 | F200022 |
Thumb spica radial splint (Flat type)


INDICATION: Post scaphoid fracture, Carpal tunnel syndrome, Skier's thumb, Tendinitis, Post-surgical repair
Offering excellent support and compression to the wrist, CMC and MCP joints.
Art no. | Size | Side | Size(mm) | Order# |
---|---|---|---|---|
HSA-220 | LARGE | RIGHT | 135 × 275 | F220011 |
HSA-220 | LARGE | LEFT | 135 × 275 | F220012 |
HSA-220 | MEDIUM | RIGHT | 110 × 224 | F220021 |
HSA-220 | MEDIUM | LEFT | 110 × 224 | F220022 |
HSA-220 | SMALL | RIGHT | 90 × 183 | F220031 |
HSA-220 | SMALL | LEFT | 90 × 183 | F220032 |
HSA-220 | X-SMALL | RIGHT | 80 × 175 | F220041 |
HSA-220 | X-SMALL | LEFT | 80 × 175 | F220042 |
Volar/ Dosal/ Ulnar gutter splint (Flat type)

INDICATION: Immobilisation of the wrist, Distal radius, ulna and carpals, excluding scaphoid
Rehabilitation phase after hand surgery
First aid and first care: transitory fixation before or just after surgery
Art no. | Size | Side | Size(mm) | Order# |
---|---|---|---|---|
HSA-300 | LARGE | UNIVERSAL | 140 × 400 | F300010 |
HSA-300 | MEDIUM | UNIVERSAL | 113 × 325 | F300020 |
HSA-300 | SMALL | UNIVERSAL | 92 × 265 | F300030 |
HSA-300 | X-SMALL | UNIVERSAL | 82 × 215 | F300040 |
Finger splint (Flat type)


INDICATION: Finger sprains, Wrist sprains
To immobilize the finger sprains, strains, minor fractures and post-operative alignment
Art no. | Size | Side | Size(mm) | Order# |
---|---|---|---|---|
HFS-1000 | UNIVERSAL | UNIVERSAL | 95 × 220 | F100000 |
Resting pan mitt splint (Flat type)


INDICATION: Positions wrist in neutral with fingers in partial flexion MCP or CMC joint of the thumb
Specially suited for people with arthritis who require support of the MCP or CMC joint of the thumb
Splint may be used volarly or dorsally to splint hypertonic hands.
Art no. | Size | Side | Size(mm) | Order# |
---|---|---|---|---|
HSA-230 | UNIVERSAL | RIGHT | 335 × 160 | F230001 |
HSA-230 | UNIVERSAL | LEFT | 335 × 160 | F230002 |
Functional position palmar splint (Flat type)


INDICATION: Rheumatoid arthritis, Contracture in flexion or hyperextension of the wrist, including contracted fist
Contracture of the hand with or without radial or ulnar deviations of the hand.
It has a wrist strap to maintain it in the suitable position and to secure a progressive stretching.
The adjustment of the thumb correction can be varied.
Art no. | Size | Side | Size(mm) | Order# |
---|---|---|---|---|
HSA-320 | LARGE | RIGHT | 125 × 400 | F320011 |
HSA-320 | LARGE | LEFT | 125 × 400 | F320012 |
HSA-320 | MEDIUM | RIGHT | 101 × 325 | F320021 |
HSA-320 | MEDIUM | LEFT | 101 × 325 | F320022 |
HSA-320 | SMALL | RIGHT | 82 × 265 | F320031 |
HSA-320 | SMALL | LEFT | 82 × 265 | F320032 |
Wrist neutral palmar splint (Flat type)


INDICATION: Arthritic conditions, Post reconstructive surgery, Sprains/ strains, Tendinitis, Post wrist fracture
This provides effective circumferential compression and support to the wrist while allowing full thumb and finger motion.
Useful as a step-down splint in later stage rehab or to encourage reaction with patients
who struggle with transition from immobilization to movement due to pain or anxiety.
Art no. | Size | Side | Size(mm) | Order# |
---|---|---|---|---|
HSA-420 | LARGE | RIGHT | 140 × 320 | F420011 |
HSA-420 | LARGE | LEFT | 140 × 320 | F420012 |
HSA-420 | MEDIUM | RIGHT | 114 × 260 | F420021 |
HSA-420 | MEDIUM | LEFT | 114 × 260 | F420022 |
HSA-420 | SMALL | RIGHT | 95 × 230 | F420031 |
HSA-420 | SMALL | LEFT | 95 × 230 | F420032 |
HSA-420 | X-SMALL | RIGHT | 80 × 164 | F420041 |
HSA-420 | X-SMALL | LEFT | 80 × 164 | F420042 |
