HYGIA ONE MINUTE SPLINT
(Premold type only)
HYGIA ONE MINUTE SPLINT is a device used to immobilize, protect and support injuries such as fractures, sprains and strains.
It differs from traditional plaster casts in that they are lighter, easily molded to fit the body of the individual patient
and can be removed for cleaning and patient bathing.
** All products are premold type and include straps. (no flat type)
Benefits
- 1 Designed to be the replacement for synthetic splint
- 2 Easy splinting solution
- 3 Sets up in 1minute
- 4 Quick setting time fulfills the demands of modern users for a fast
- 5 No need to use water or heat
- 6 Breathable drape offers a close-conforming fit

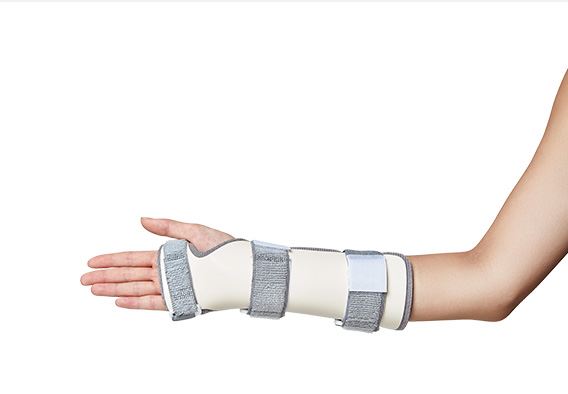

Thumb hole radial splint
INDICATION: Carpal tunnel syndrome, Tendonitis, Arthritis, Strains
This has high compression features and provides excellent support to injured wrist and allows full function of the fingers
and thumb at the same time as protecting the wrist.
Provides radial and ulnar styloid relief.
Art no. | Size | Side | Size(mm) |
---|---|---|---|
H200011 | LARGE | RIGHT | 100 × 270 |
H200012 | LARGE | LEFT | 100 × 270 |
H200021 | MEDIUM | RIGHT | 85 × 240 |
H200022 | MEDIUM | LEFT | 85 × 240 |
Thumb spica radial splint
INDICATION: Post scaphoid fracture, Carpal tunnel syndrome, Skier's thumb, Tendinitis, Post-surgical repair
Offering excellent support and compression to the wrist, CMC and MCP joints.
Art no. | Size | Side | Size(mm) |
---|---|---|---|
H220011 | LARGE | RIGHT | 90 × 240 |
H220012 | LARGE | LEFT | 90 × 240 |
H220021 | MEDIUM | RIGHT | 80 × 240 |
H220022 | MEDIUM | LEFT | 80 × 240 |
H220031 | SMALL | RIGHT | 75 × 210 |
H220032 | SMALL | LEFT | 75 × 210 |
H220041 | X-SMALL | RIGHT | 60 × 180 |
H220042 | X-SMALL | LEFT | 60 × 180 |
Volar splint
INDICATION: Immobilisation of the wrist, Distal radius, ulna and carpals, excluding scaphoid
Rehabilitation phase after hand surgery
First aid and first care: transitory fixation before or just after surgery
Art no. | Size | Side | Size(mm) |
---|---|---|---|
H300111 | LARGE | RIGHT | 115 × 360 |
H300112 | LARGE | LEFT | 115 × 360 |
H300121 | MEDIUM | RIGHT | 100 × 300 |
H300122 | MEDIUM | LEFT | 100 × 300 |
H300131 | SMALL | RIGHT | 80 × 240 |
H300132 | SMALL | LEFT | 80 × 240 |
H300141 | X-SMALL | RIGHT | 70 × 220 |
H300142 | X-SMALL | LEFT | 70 × 220 |
Ulnar gutter splint
INDICATION: Immobilisation of the wrist, Distorsions, Stable fractures, after surgery
Conservative treatment of tendonitis/ tendovaginitis (without involvement of the thumb)
as well as degenerative or inflammatory conditions of the wrist.
Adjuvant therapy of reflex sympathetic dystrophy.
Art no. | Size | Side | Size(mm) |
---|---|---|---|
H300211 | LARGE | RIGHT | 105 × 385 |
H300212 | LARGE | LEFT | 105 × 385 |
H300221 | MEDIUM | RIGHT | 85 × 320 |
H300222 | MEDIUM | LEFT | 85 × 320 |
H300231 | SMALL | RIGHT | 70 × 280 |
H300232 | SMALL | LEFT | 70 × 280 |
Dosal splint
INDICATION: Carpal tunnel syndrome, Tendon injuries, Wrist sprains
Dorsal design for increased patient compliance.
First aid and first care: transitory fixation before or just after surgery Conservative treatment in tendonitis,
inflammation and degenerative diseases of the wrist, even as resting splints
Art no. | Size | Side | Size(mm) |
---|---|---|---|
H300311 | LARGE | RIGHT | 105 × 385 |
H300312 | LARGE | LEFT | 105 × 385 |
H300321 | MEDIUM | RIGHT | 90 × 320 |
H300322 | MEDIUM | LEFT | 90 × 320 |
H300331 | SMALL | RIGHT | 70 × 280 |
H300332 | SMALL | LEFT | 70 × 280 |

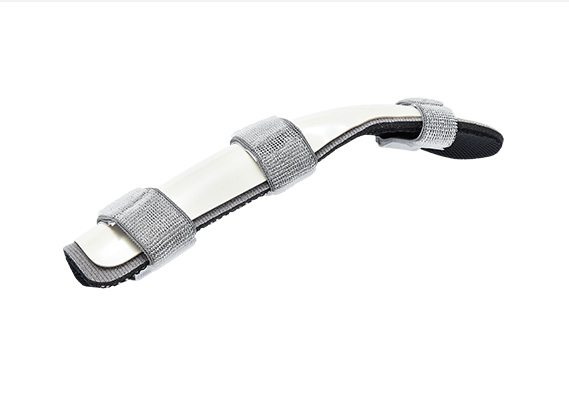

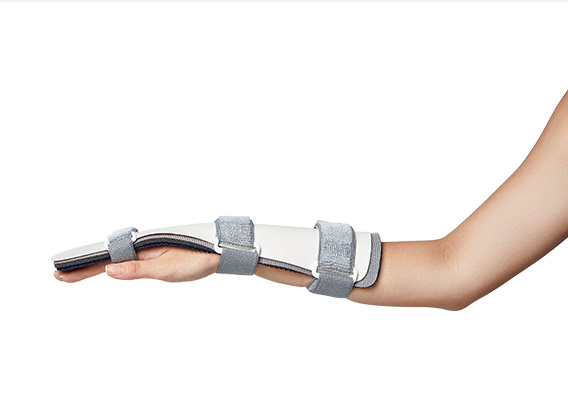

Finger splint
INDICATION: Finger sprains, Wrist sprains
To immobilize the finger sprains, strains, minor fractures and post-operative alignment
Art no. | Size | Side | Size(mm) |
---|---|---|---|
H100000 | UNIVERSAL | UNIVERSAL | 80 × 220 |

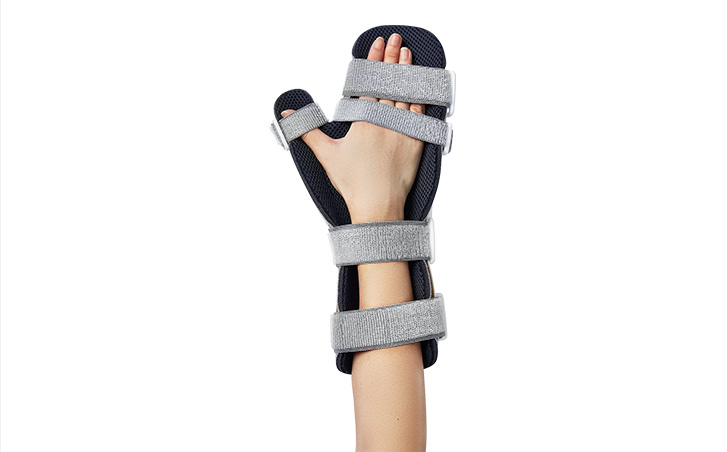

Resting pan mitt splint
INDICATION: Positions wrist in neutral with fingers in partial flexion MCP or CMC joint of the thumb
Specially suited for people with arthritis who require support of the MCP or CMC joint of the thumb
Splint may be used volarly or dorsally to splint hypertonic hands.
Art no. | Size | Side | Size(mm) |
---|---|---|---|
H230001 | UNIVERSAL | RIGHT | 330 × 160 |
H230002 | UNIVERSAL | LEFT | 330 × 160 |
Functional position palmar splint
INDICATION: Rheumatoid arthritis, Contracture in flexion or hyperextension of the wrist, including contracted fist
Contracture of the hand with or without radial or ulnar deviations of the hand.
It has a wrist strap to maintain it in the suitable position and to secure a progressive stretching.
The adjustment of the thumb correction can be varied.
Art no. | Size | Side | Size(mm) |
---|---|---|---|
H320011 | LARGE | RIGHT | 115 × 360 |
H320012 | LARGE | LEFT | 115 × 360 |
H320021 | MEDIUM | RIGHT | 95 × 292 |
H320022 | MEDIUM | LEFT | 95 × 292 |
H320031 | SMALL | RIGHT | 77 × 237 |
H320032 | SMALL | LEFT | 77 × 237 |
Wrist neutral palmar splint
INDICATION: Arthritic conditions, Post reconstructive surgery, Sprains/ strains, Tendinitis, Post wrist fracture
This provides effective circumferential compression and support to the wrist while allowing full thumb and finger motion.
Useful as a step-down splint in later stage rehab or to encourage reaction with patients
who struggle with transition from immobilization to movement due to pain or anxiety.
Art no. | Size | Side | Size(mm) |
---|---|---|---|
H420011 | LARGE | RIGHT | 100 × 300 |
H420012 | LARGE | LEFT | 100 × 300 |
H420021 | MEDIUM | RIGHT | 85 × 250 |
H420022 | MEDIUM | LEFT | 85 × 250 |
H420031 | SMALL | RIGHT | 80 × 210 |
H420032 | SMALL | LEFT | 80 × 210 |
H420041 | X-SMALL | RIGHT | 70 × 170 |
H420042 | X-SMALL | LEFT | 70 × 170 |
Forearm humerus splint
INDICATION: Fixation of the region of the elbow following injuries and surgery
Post-traumatic immobilisation of the elbow joint,
e.g. condition after bursectomy, sulcus ulnaris, descending tendopathies.
Art no. | Size | Side | Size(mm) |
---|---|---|---|
H500010 | LARGE | UNIVERSAL | 270 × 375 |
H500020 | MEDIUM | UNIVERSAL | 230 × 350 |
H500030 | SMALL | UNIVERSAL | 170 × 310 |
H500040 | X-SMALL | UNIVERSAL | 110 × 190 |
Tibial splint (below knee)
INDICATION: Lower leg, ankle foot
Short-term fixation of the ankle region (including Achilles tendon) and foot following injuries and surgery.
Designed to increase stability and help decrease pain
Provides a protected range of motion following trauma or post-operative procedures
Art no. | Size | Side | Size(mm) |
---|---|---|---|
H600000 | X-LARGE | UNIVERSAL | 290 × 390 |
H600010 | LARGE | UNIVERSAL | 265 × 350 |
H600020 | MEDIUM | UNIVERSAL | 245 × 325 |
H600030 | SMALL | UNIVERSAL | 215 × 315 |
H600040 | X-SMALL | UNIVERSAL | 190 × 295 |
Ankle splint
INDICATION: Acute ankle injuries
Traditional stirrup design provides compression and promotes circulation to reduce swelling.
Soft drapes included for combined therapy.
Fits easily into most shoes.
Universal sizing reduces inventory on hand.
Art no. | Size | Side | Size(mm) |
---|---|---|---|
H640000 | UNIVERSAL | UNIVERSAL | 90 × 260 |
Femoral splint (above knee)
INDICATION: Shaft fractures of the femur and for immobilisation of the knee.
Maybe molded to the contour of the limb
Art no. | Size | Side | Size(mm) |
---|---|---|---|
H700010 | LARGE | UNIVERSAL | 255 × 700 |
H700020 | MEDIUM | UNIVERSAL | 255 × 600 |
H700030 | SMALL | UNIVERSAL | 215 × 540 |
H700040 | X-SMALL | UNIVERSAL | 200 × 400 |
Cylinder splint
INDICATION: Postsurgical or posttraumatic immobilisation
Allowing adjustment to a wide range of calf, thigh and knee circumferences.
The soft drape stays are shaped for a greater comfort and fitting.
Art no. | Size | Side | Size(mm) |
---|---|---|---|
H740010 | LARGE | UNIVERSAL | 160 × 550 |
H740020 | MEDIUM | UNIVERSAL | 160 × 500 |
H740030 | SMALL | UNIVERSAL | 110 × 420 |
